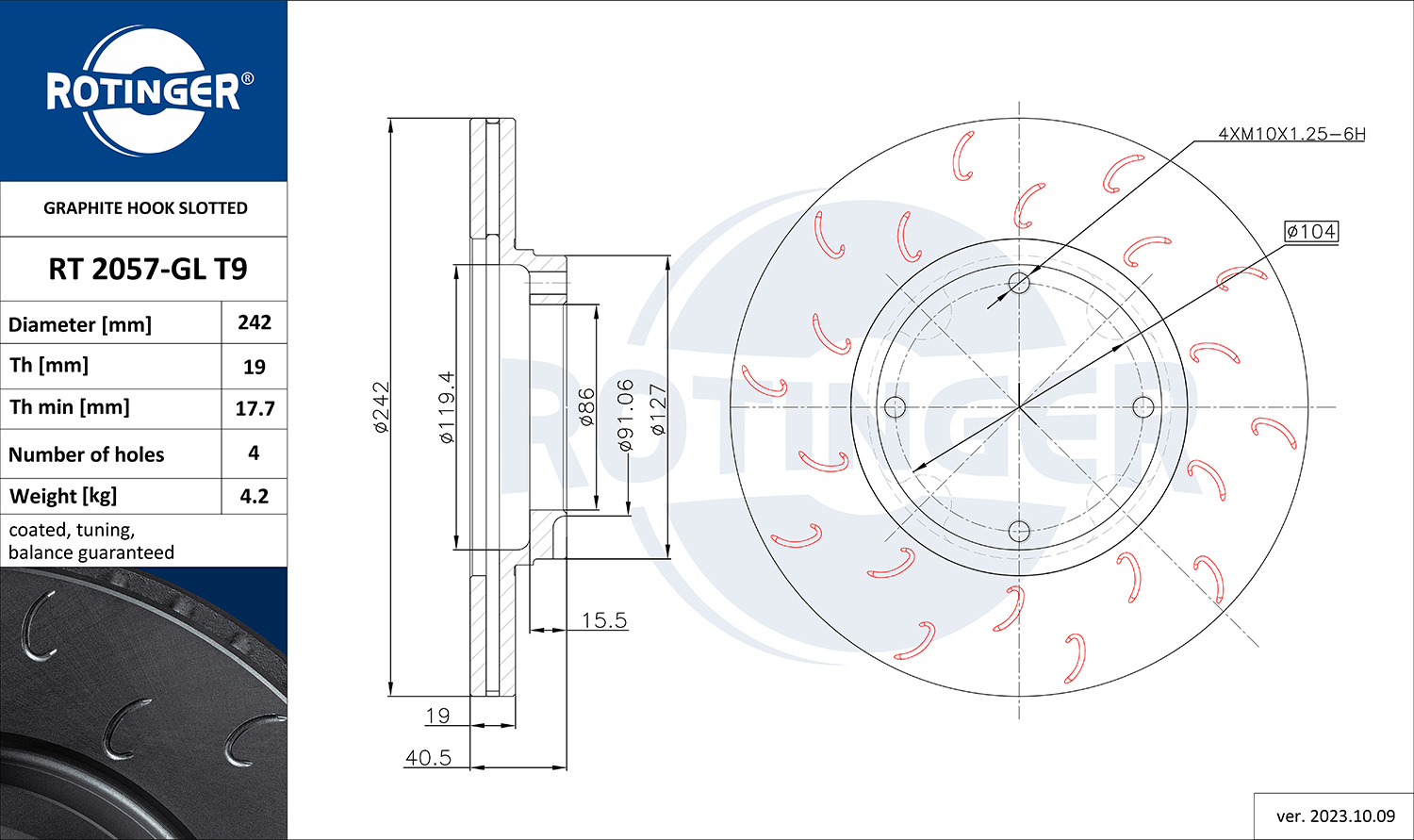

| Typ brzdového kotúča | s vnútorným chladením |
| Vonkajżí priemer [mm] | 242 |
| Hrúbka brzd. kotúča (mm) | 19 |
| Výżka [mm] | 40,5 |
| Minimálna hrúbka (mm) | 17,7 |
| Rozstupová krużnica Ø [mm] | 104 |
| Centrovací priemer [mm] | 86 |
| Rozmiestnenie otvorov/Počet otvorov | 04/04 |
| Doplnkový tovar/ Dopňujúca informácia 2 | bez náboja kolesa |
| Doplnkový tovar/ Dopňujúca informácia 2 | bez skrutiek upevnujucich koleso |
| Dĺżka balenia [cm] | 27,8 |
| Výżka balenia [cm] | 10,5 |
| Hmotnosť [kg] | 4,2 |
| Značka | Číslo |
|---|---|
| 1110739 | |
| A.B.S. | 16047OE |
| A.B.S. | 09500410 |
| A.B.S. | 16047 |
| ABE | C30500ABE |
| AKEBONO | BN0851 |
| AKEBONO | BN0851E |
| ALANKO | 10305287 |
| APEC | DSK204 |
| ASHIKA | 6000057 |
| ATE | 24011901091 |
| ATE | 419109 |
| AUGROS | 5299451P |
| BARUM | BAR19109 |
| BENDIX | 561521BC |
| BENDIX | 520197 |
| BENDIX | 561521B |
| BENDIX Braking | BDI220 |
| BLUE PRINT | ADG04302 |
| BORG & BECK | BBD4990 |
| BOSCH | BD590 |
| BOSCH | 0986478674 |
| BOSCH | 986478674 |
| BOSCH | F026A00891 |
| BOSCH | 0986AB9929 |
| BOSCH | 0986479123 |
| BRADI | 1180324 |
| Brake ENGINEERING | DI955079 |
| BRAXIS | AE0238 |
| BRECO | BS7927 |
| BREMBO | 9500410 |
| BREMBO | 09500414 |
| BREMBO | 09500410 |
| BREMBO | 09500411 |
| BREMSI | CD6389V |
| CAR | 142961 |
| CIFAM | 800393 |
| COMLINE | AND6949 |
| COMLINE | ADC1003V |
| DELPHI | BG2394 |
| DENCKERMANN | B130095 |
| DON | PCD16292 |
| DYNAMATRIX | DBD389 |
| E.T.F. | 192135 |
| EBC Brakes | D498 |
| EUROBRAKE | 5815203402 |
| EUROREPAR | 1686319480 |
| FEBI BILSTEIN | 108597 |
| FERODO | DDF389X |
| FERODO | DDF3891 |
| FERODO | DDF389 |
| FOMAR Friction | FO2210 |
| FREMAX | BD2135 |
| FTE | BS4183 |
| FTE | BS3954 |
| GIRLING | 6019581 |
| HELLA PAGID | 355035071 |
| HELLA PAGID | 8DD355103271 |
| HELLA PAGID | 355130972 |
| HELLA PAGID | 355026851 |
| HELLA PAGID | 355103271 |
| HELLA PAGID | 8DD355130972 |
| HERTH+BUSS JAKOPARTS | J3300501 |
| Hi-Q | SD1001 |
| HYUNDAI | 5171221B00 |
| HYUNDAI | 5171221350DS |
| HYUNDAI | 5171224100 |
| HYUNDAI | 5171221350 |
| ICER | 78BD21352 |
| JAPANPARTS | DIH01 |
| JAPANPARTS | DI057 |
| JAPANPARTS | DI057C |
| JAPCAR | 172044 |
| JURATEK | HYU100 |
| JURID | 561521J |
| JURID | 561521JC |
| KAVO PARTS | BR3235 |
| KAVO PARTS | BR3235C |
| KAWE | 637410 |
| LPR | H2011V |
| MAGNETI MARELLI | 360406000200 |
| METELLI | 230393 |
| METZGER | 6110618 |
| MEYLE | 37155210003 |
| MGA | D1193 |
| MINTEX | MDC845 |
| MOTAQUIP | LVBD524Z |
| NIPPARTS | J3300501 |
| NISSHINBO | ND6049K |
| NISSHINBO | ND6049 |
| NK | 203402 |
| NK | 313402 |
| OBTEC A/S | 815444402V |
| OPTIMAL | BS3740C |
| OPTIMAL | BS3740 |
| PAGID | 51201 |
| QUINTON HAZELL | BDC4183 |
| QUINTON HAZELL | BDC3954 |
| QUINTON HAZELL | BDC3744 |
| R BRAKE | 78RBD22135 |
| REMSA | 637410 |
| RIDEX | 82B0941 |
| ROADHOUSE | 637410 |
| sbs | 1815203402 |
| STELLOX | 60203402VKSX |
| STOP | 561521S |
| SWAG | 33111157 |
| TEXTAR | 98200062601 |
| TEXTAR | 92062603 |
| TEXTAR | 89009900 |
| TRUSTING | DF288 |
| TRW | DF1958 |
| VAICO | V5280002 |
| VALEO | 186441 |
| WOKING | D637410 |
| WÜRTH | 980820132 |
| ZIMMERMANN | 285350270 |
| ZIMMERMANN | 285350275 |
| ZIMMERMANN | 285350220 |
| ZIMMERMANN | 285350272 |
| ZIMMERMANN | 285350200 |
| Model | Rok | Kód motora | KW | CCM |
|---|---|---|---|---|
HYUNDAI |
||||
HYUNDAI ACCENT I (X-3) |
||||
| 1.3 | 1994 - 2000 | G4CH, G4EH | 44 | 1341 |
| 1.3 | 1994 - 2000 | G4DH, G4EH | 55 | 1341 |
| 1.3 i 12V | 1994 - 2000 | G4EH | 62 | 1341 |
| 1.5 | 1994 - 1997 | G4EK | 69 | 1495 |
| 1.5 i 12V | 1994 - 2000 | G4EK | 65 | 1495 |
| 1.5 i 16V | 1995 - 2000 | G4FK | 73 | 1495 |
HYUNDAI ACCENT Stufenheck (X-3) |
||||
| 1.3 | 1994 - 2000 | G4CH, G4EH | 44 | 1341 |
| 1.3 | 1994 - 2000 | G4DH, G4EH | 55 | 1341 |
| 1.3 i 12V | 1994 - 2000 | G4EH | 62 | 1341 |
| 1.5 | 1994 - 1999 | G4EK | 69 | 1495 |
| 1.5 i 12V | 1994 - 2000 | G4EK | 65 | 1495 |
| 1.5 i 16V | 1995 - 2000 | G4FK | 73 | 1495 |
HYUNDAI PONY (X-2) |
||||
| 1.3 | 1989 - 1995 | G4DG | 43 | 1298 |
| 1.3 | 1989 - 1995 | G4DG | 49 | 1298 |
| 1.3 | 1989 - 1991 | G4DG | 51 | 1298 |
| 1.5 | 1989 - 1995 | G15B, G4DJ | 53 | 1468 |
| 1.5 i | 1989 - 1995 | G15B, G4DJ | 61 | 1468 |
| 1.5 i | 1989 - 1995 | G15B, G4DJ | 62 | 1468 |
HYUNDAI PONY / EXCEL Stufenheck (X-2) |
||||
| 1.3 | 1989 - 1994 | G4DG | 51 | 1298 |
| 1.3 | 1990 - 1995 | G4DG | 49 | 1298 |
| 1.3 | 1992 - 1994 | G4DG | 48 | 1298 |
| 1.5 | 1990 - 1995 | G15B, G4DJ | 53 | 1468 |
| 1.5 i | 1990 - 1995 | G15B, G4DJ | 61 | 1468 |
| 1.5 i | 1990 - 1995 | G15B, G4DJ | 62 | 1468 |
HYUNDAI PONY (X-1) |
||||
| 1.3 | 1985 - 1989 | G13B | 50 | 1299 |
| 1.5 (X-1) | 1985 - 1989 | G4DJ | 53 | 1468 |
HYUNDAI PONY Stufenheck (X-1) |
||||
| 1.3 | 1985 - 1989 | G13B | 50 | 1299 |
| 1.5 | 1985 - 1989 | G4DJ | 53 | 1468 |
| 1.5 | 1985 - 1989 | G4AJ | 64 | 1468 |
HYUNDAI EXCEL Stufenheck |
||||
| 1.5 | 1992 - 1995 | G4AJ | 56 | 1468 |
HYUNDAI S COUPE (SLC) |
||||
| 1.5 | 1991 - 1995 | G4EK | 75 | 1495 |
| 1.5 GS | 1990 - 1992 | G4DJ | 57 | 1468 |
| 1.5 i | 1990 - 1996 | G4DJ | 62 | 1468 |
| 1.5 i | 1992 - 1996 | G4EK | 65 | 1495 |
| 1.5 i Turbo | 1991 - 1996 | G4EK-TC | 85 | 1495 |
